AC SERVO MOTOR ที่ร้านเราจำหน่าย
สูตรคำนวณการส่ง pulse ให้กับ Servo motor คือ
Pulse Frequency (Hz) = (Motor Speed (RPM) x Pulse/Revolution) / 60
เมื่อ
- Pulse Frequency (Hz) = ความถี่ของสัญญาณ pulse ที่จะส่งให้กับ Servo motor
- Motor Speed (RPM) = ความเร็วของ Servo motor ที่ต้องการให้วิ่งในหน่วย RPM (Revolutions per minute)
- Pulse/Revolution = จำนวนของสัญญาณ pulse ที่ต้องส่งให้กับ Servo motor ในแต่ละรอบหมุนของมอเตอร์
- 60 = จำนวนวินาทีในหนึ่งนาที
อย่างไรก็ตาม สูตรนี้อาจแตกต่างไปตามเทคโนโลยีและแบรนด์ของ Servo motor ที่ใช้งานอยู่ด้วย.
For example,
the pulses sent by your PLC is 10000 for one motor rotation,
our PA11=10000(Pulse/Revolution) as default. If you need to run 3000rpm,
it needs 3000×10000=30000000 pulses per minute in total.
So every second you need to set pulse frequency 30000000÷60=500KHz.
ตัวอย่างการส่ง Puls จาก PLC
พัลส์ที่ส่งโดย PLC ของคุณคือ 10000 สำหรับการหมุนมอเตอร์หนึ่งครั้ง
PA11 ของเรา = 10,000(Pulse/Revolution) เป็นค่าเริ่มต้น
หากคุณต้องการวิ่ง 3000 รอบต่อนาที(RPM)
มันต้อง 3000×10000=30,000,000 พัลส์ต่อนาทีทั้งหมด
ดังนั้นทุก ๆ วินาที คุณต้องตั้งค่าความถี่พัลส์ 30000000÷60=500KHz
ตัวอย่างเช่น
PA11 ของเรา = 10,000 (Pulse/Revolution) เป็นค่าเริ่มต้น (our PA11=10000 as default)
ดังนั้น พัลส์ที่ส่งโดย PLC ของคุณคือ 10000 สำหรับการหมุนมอเตอร์หนึ่งรอบ
หากคุณต้องการวิ่ง 300 รอบต่อนาที(RPM)
มันต้อง 300×10000=3,000,000 พัลส์ต่อนาทีทั้งหมด
ดังนั้นทุก ๆ วินาที คุณต้องตั้งค่าความถี่พัลส์ 3,000,000÷60=50KHz
วิธีการคำนวณระยะทางจากรอบของวัตถุขึ้นอยู่กับรัศมีของวัตถุนั้น ๆ ซึ่งสามารถคำนวณได้ตามสูตรดังนี้
ระยะทาง = 2 x พิจารณาความยาวเส้นรอบ x รัศมี
โดยที่
- พิจารณาความยาวเส้นรอบ: เป็นระยะทางที่วัตถุเคลื่อนที่ในแต่ละรอบ ซึ่งจะขึ้นอยู่กับความเร็วและความถี่ของการหมุน
- รัศมี: เป็นระยะทางจากจุดศูนย์กลางของวัตถุไปยังจุดที่ต้องการวัดระยะทาง
ตัวอย่างเช่น ถ้าเรามีวัตถุที่เคลื่อนที่ในแต่ละรอบไปทางเดียวกัน โดยความยาวเส้นรอบของวัตถุเท่ากับ 10 เมตร และรัศมีของวัตถุเป็น 2 เมตร จะได้ว่า
ระยะทาง = 2 x 10 x 2 = 40 เมตร
วิธีการคำนวณรอบให้เป็นระยะทางจะขึ้นอยู่กับความละเอียดและขนาดของเครื่องมือวัดที่ใช้ โดยสามารถใช้สูตรดังนี้
รอบ = ระยะทาง ÷ (เส้นผ่าศูนย์กลาง x 3.14)
เมื่อ
- รอบคือจำนวนรอบที่เครื่องหมุนทำได้
- ระยะทางคือระยะทางที่เครื่องหมุนเคลื่อนที่ได้
- เส้นผ่าศูนย์กลางคือระยะห่างจากจุดศูนย์กลางของวัตถุที่หมุนกับแกนของเครื่อง
ตัวอย่าง: หากเครื่องหมุนเคลื่อนที่ได้ระยะทาง 200 มม. และมีเส้นผ่าศูนย์กลาง 20 มม. จะได้ว่า
รอบ = 200 ÷ (20 x 3.14) = 3.18 รอบ (ประมาณ)
-
750W-Brake Absolute AC Servo Motor
฿6,800 Add to cart -
100W AC Servo Motor Set
Read more -
HPZS90 Right Angle Series Precision Planetary Gearbox
฿9,800 Add to cart -
P500H-7.5KW Servo Driver
Read more -
P200S ECO AC Servo Driver
฿5,700 Add to cart -
NMRV40 Worm Gearbox 1:20 และ 1:30 สำหรับมอเตอร์ หน้าแปลน 60มม. เพลา14มม
฿2,800 Select options -
15KW Servo Motor 96N.m + 15KW Inverter Controller
Read more -
AF180-3-K5-55T16-T Planetary Gear Box
Read more -
1KW-DB80-03230A6-TJA-B Servo Motor With Brake
฿8,800 Add to cart -
1KW Servo Motor Set DS100S-75
Read more -
1KW Servo Motor Set P200H
Read more -
400W AC Servo Motor DB60-01330A6-GA
฿5,500 Add to cart -
P100S-75 Simple Pulse AC Servo Drive
฿5,500 Add to cart -
750W Absolute AC Servo Motor
฿5,800 Add to cart -
1.0KW DB80-03230A6-TJA Economical Absolute AC Servo Motor
฿6,500 Add to cart -
P100H-75 High performance Type AC Servo Driver
฿5,800 Add to cart -
P100H-40 High performance Pulse Type AC Servo Drive
฿5,500 Add to cart -
400W ECO AC Servo Motor with Brake 24V.
฿8,000 Add to cart -
PLF060-L1-5-S2-P2 Servo Plantary Gear Ratio 5:1
฿4,500 Add to cart -
P200H ECO.AC Servo Driver
฿5,900 Add to cart -
สายไฟ Power P100P-3-G-X-4PA สำหรับ P100 Servo Driver ยาว 3ม.
฿350 Add to cart -
สาย Encoder E100P-3-G-X-9PA สำหรับ P100 Servo Driver ยาว 3ม.
฿350 Add to cart -
สาย Encoder E100P-10-G-X-9PA สำหรับ Servo Driver P100 ยาว 10ม.
฿1,200 Add to cart -
สายไฟ Servo Motor Driver P100P ยาว 10ม.
฿1,200 Add to cart -
0-10V.โมดูลกำเนิดสัญญาณคลื่นสี่เหลี่ยมความถี่พัลส์
฿350 Add to cart -
PLF120-Reducer Gearboxes
Read more -
ชุด SET 750W AC Servo Motor with 3m Cable
Read more -
TB090-10-S2-P1 Planetary Gear Arcmin 3
฿12,000 Add to cart -
1.0KW-ECO Servo Motor Set P100S
Read more -
NMRV050 Worm Gearbox สำหรับ Servo Motor หน้าแปลนรูน็อตเส้นผ่าศูนย์กลาง 80-90มม
฿4,800 Select options -
PLF090-Reducer Planetary Gear boxes
฿6,700 Add to cart -

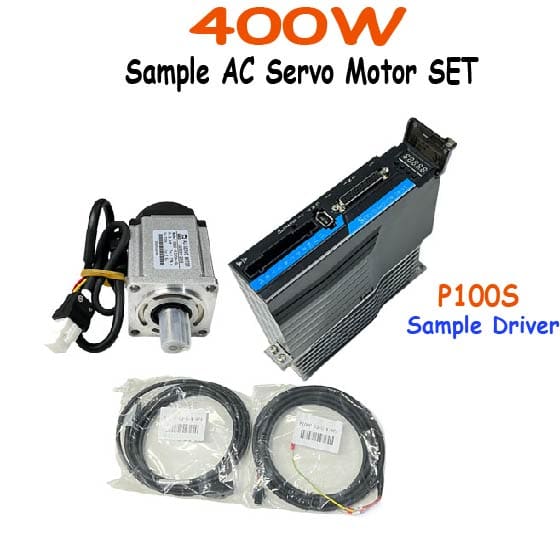

400W+P100S-40 SIMPLE AC SERVO SET
