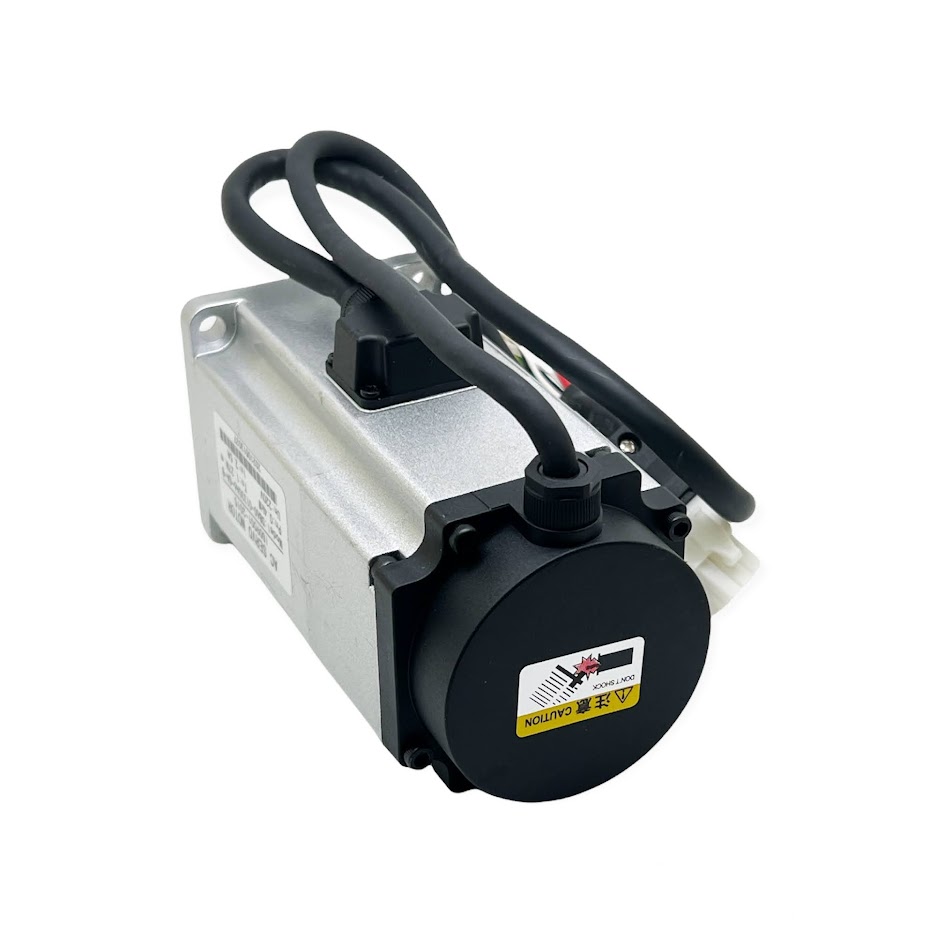

400W ECO AC Servo Motor with Brake 24V.

฿7,500

150x50px visa accept

Description

400W ECO AC Servo Motor with Brake 24V.

Specification
Model: DB60-01330A6-GA-B with Brake
Rated Power(KW): 0.4Kw
Rated Voltage(V): 220V
Rated Current(A): 2.5A
Peak Current(A): 7.5A
Rated Torque(N.m): 1.27N.m
Peak Torque(N.m): 3.81N.m
Rated Speed(rpm): 3000rpm
Max speed(rpm): 6000rpm
Constant Voltage(V/1000r.min): 31
Line-line Resistance(Ω): 3.24
Line-line Inductance(mH): 5.8
Rotor Inertia(Kg.m ): 0.52×10
Pole Pairs: 10
Insulation Class: F(155℃)

Encoder Type
A6 = economical single-turn 17 bits absolute encoder
A1 = economical multi-turn 17 bits absolute encoder
B4 = high performance single-turn 23 bits absolute encoder
B9 = Optical single-turn 17 bits absolute encoder
I5 = Optical 10000ppr incremental encoder

Packing
1 pcs  x  DB60-01330A6-GA-B with Brake
Packing Size:  18cm x 25cm x 15cm
Weight: 1.7Kg

Additional information

Weight 1.7 kg
Dimensions 25 × 18 × 15 cm
