Description

 MT3 ER25 Collet Chuck

Features:
Performance stability, high accuracy.
Ease of operation and high quality work results.
Available in the BT ER extension rod handle, can be used for clamping drill, milling cutter, straight shank tool.
Collet must be assembled into the clamping nut before inserting into the chuck.
It is a precision collet for professionals and hobbyists demanding ease of operation and high quality work results.

Specifications:

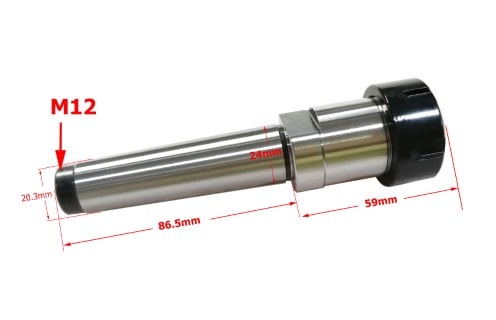

Name: MT3 ER25 Collet Chuck
Model: ER25 MT3
Material: Metal
Shank Type: MT3
Collet Type: ER25
Drawbar Thread: M12 / 1/2-13
Material: high grade spring steel
Color: black,silver
Type: ER25

Note:
Before using this tool, please measurement tool deflection, tool deflection accuracy exceeds 0.01MM, please correct before cutting.
The tool extends the length of the chuck as short as possible, the tool extends the amount of time longer if extended, please cut their own speed, feed rate or cutting the amount.
If the cutting of abnormal vibration or sound, cut spindle speed and depth of cut to improve the situation so far.

Package included:
1 Pcs x ER25 MT3 M12 Collet Chuck

Additional information

Weight 45 kg
Dimensions 20 × 10 × 10 cm
