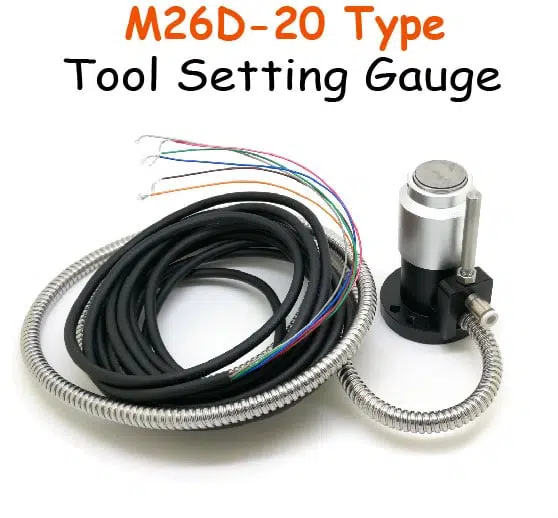

M26D-20 Tool Setting Gauge

SKU 030738 Category Tag

M26D-20 เกจตั้งเครื่องมือ

฿2,380

150x50px visa accept

Description

M26D-20 Tool Setting Gauge

M26D-20-Tool-Setting-Gauge

M26D-20 เกจตั้งเครื่องมือ

Specifications
Product name:                          M26D-20
Contact diameter:                    Ø20mm
Surface finishing:                    Grinding 4s
Contact material:                   Tungsten carbide
Contact structure:                   NC (Normally closed)
Pretravel:                                  0
Stroke:                                       5mm
Repeatability:                          0.002(Recommended operating speed of 50 -200mm/min)
Contact life time:                    3 million
Protective structure:               IP67
Contact force:                          1.5N (Installation position: Vertical)
Cable:                                        Oil resistant, standard 5 m (length can be customized)φ4.8 / 6 cores
LED lamp: Default :               LED OFF / Operating : LED ON

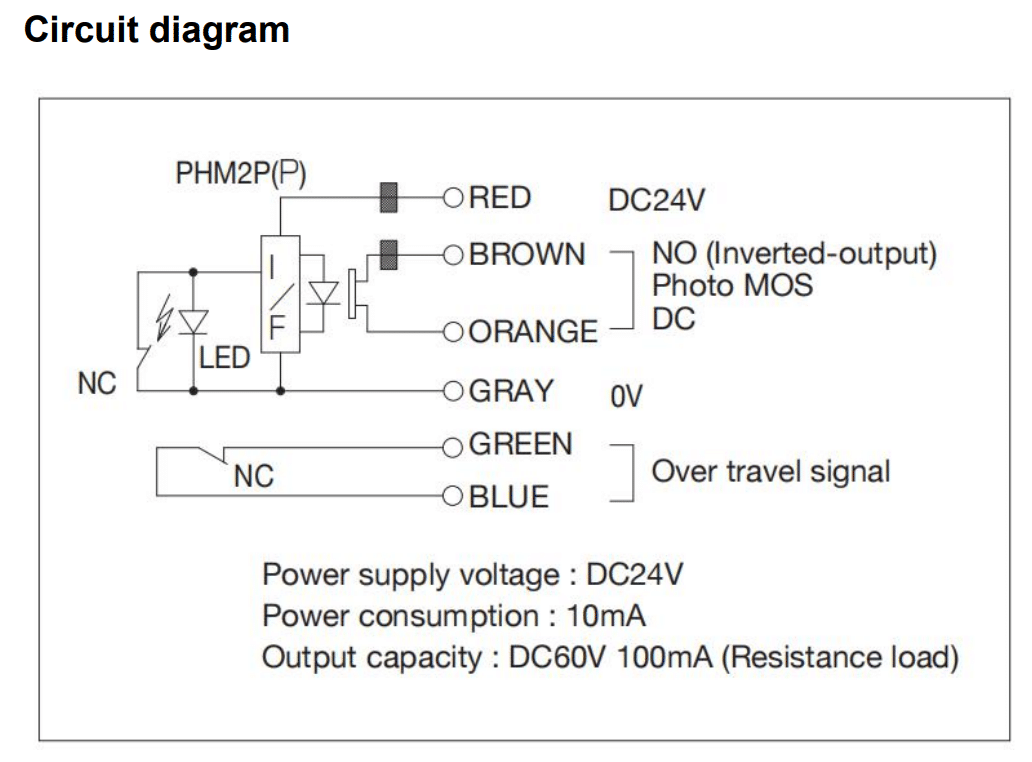

Over travel signal (built-in microswitch)
-Output mode: NC normally closed (an emergency stop when the signal broken )
-Contact rating: DC24V 20 mA resistive load

Product parameters (mm)

Output mode:     normally open/closed
Trip:     5
Height:    70
Repeatability:     0.002 (condition: the operation speed is 50-200 – mm/min)
Contact life:      3 million times
Protection structure: IP67
Contact strength: 1.5 N (install state must vertical)
The blade material: hard alloy
The diameter of the knife surface: 20 mm
Surface treatment: mirror grinding 4 s
Contact rating: DC24V 20 ma (MAX) recommended value 10 ma resistive load
Oil resistant cable specification: standard 5 m (length can be customized), 6 core
Cable sheath: 8 mm 304 stainless steel
Light: normally closed LED light when you are working on
Super cheng alarm signal
Output mode: B: NC normally closed (when the signal broken after an emergency stop)
Contact voltage: DC24V 20 ma resistive load (special circumstances must add load, the limit of current).

Product profile

Silver cnc tool setter with built-in “High-precision machine tools including CNC machiningcenters.
In addition to presetting tool length, tool setters can be used to detect wear and breakageand
correct thermal distortion. Shorten measuring time of tools and improve the running time of
machine tools,Saveman power and prevent unqualified products

รายละเอียดสินค้า

เครื่องมือตั้งค่าเครื่องมือ CNC สีเงินพร้อม “เครื่องมือเครื่องจักรความแม่นยำสูงรวมถึงศูนย์เครื่องจักรกลซีเอ็นซีในตัว
นอกเหนือจากการตั้งค่าความยาวเครื่องมือล่วงหน้าแล้ว ตัวตั้งค่าเครื่องมือยังสามารถใช้เพื่อตรวจจับการสึกหรอและการแตกหักและ
การบิดเบือนความร้อนที่ถูกต้อง ลดระยะเวลาในการวัดของเครื่องมือและปรับปรุงเวลาการทำงานของ
เครื่องมือกล ประหยัดไฟ และป้องกันสินค้าที่ไม่เหมาะสม

Fundamentals

The output switching signal of the cutter is received by the NUMERICAL control system, and then
the signal is controlled by the program to realize the tool length setting, toolwear, breakage
detection, compensation and so on.
พื้นฐาน

ระบบควบคุม NUMERICAL ได้รับสัญญาณสวิตชิ่งเอาท์พุตของเครื่องตัด จากนั้นโปรแกรมจะควบคุมสัญญาณเพื่อให้ทราบการตั้งค่าความยาวของเครื่องมือ
ชุดเครื่องมือ การตรวจจับการแตกหัก การชดเชย และอื่นๆ

PACKING:
1pcs  x    M26D-20 Tool Setting Gauge
Weight: 500g
Size:   10cm x 20cm x 10cm

*USER MANUAL

Additional information

Weight 2 kg
Dimensions 20 × 10 × 10 cm
