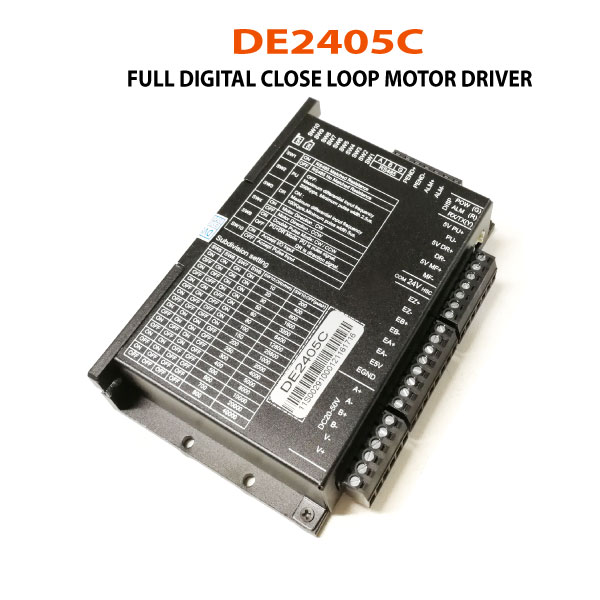

DE2405C+DE60HB86 close-loop stepper-motor Set

DE2405C+DE60HB86 close-loop stepper-motor Set

NEMA23-86mm Close-Loop Stepper Motor

Close-Loop Stepper Motor NEMA23-DE60HB86-1000, 3.0 N.m.

Specification:

Angle:                          1.8
Type:                            Hybrid
Current:                      4A.
Voltage:                       2.9V.
Torque:                        3 N.m
Motor Lenght:          86mm.
Phase:                          2 Phase
Encoder:                   1000-Line
Shaft Dia:                  8mm.
Shast Lenght:         25mm
Model:                      DE60HB86-1000-01
Certification:           CE,ROHS

Encoder Line Connection
0V: Red-White
5V: Red
B+: Black
B-: Black-White
A-: Blue-Black
A+: Blue

Installation Condition:
（1）The environment temperature should be under 80℃.
（2）In order to create a good condition to eliminate heat, please install the side of drive vertically.If it is necessary, please add a fan near the motor drive.

PACKING:

1 SET  x DE2405C+DE60HB86 close-loop stepper-motor Set
