ADTECH new upgrade CNC9640 controller with the latest CPU and large memory(512MB) replace CNC4640
ADT-CNC9640 Economic Type 4-axes CNC Milling System Main Feature: Specifications:

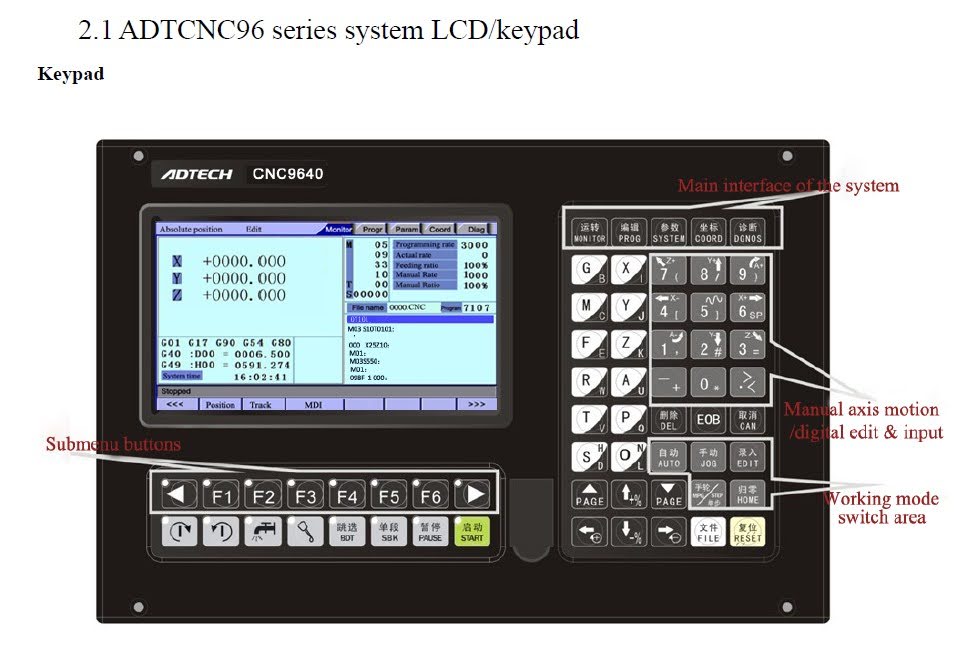

7.0 Inch TFT color display, 800 X 400 hight resolution display
Ethernet network interface, 10/100M enthernet port.
U flash and USB communication port, USB TO PC communication connector.

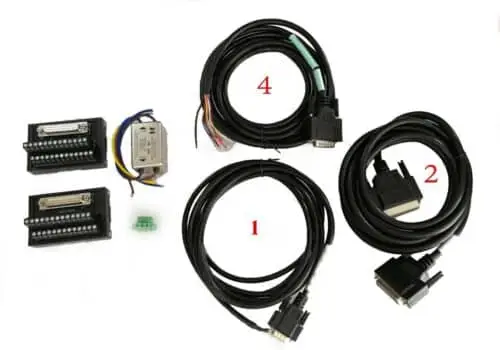

additional plate (FCNC4M) and MPG (ADT-CNC4A)
ARM 9 CPU+FPGA double core processor
4 chanel 2 mb/s high speed pulse output , 6 chanel AB phase decoder
two chanel serial RS232 connector.
SD card big capacity memory connector.
support 4 axis linkage.
-7.0 Inch TFT color display, 800 X 400 hight resolution display Ethernet network interface, 10/100M enthernet port.
-U flash and USB communication port, USB TO PC communication connector.
-Additional plate (FCNC4M) and MPG (CNC4A)
-ARM 9 CPU+FPGA double core processor
-Four chanel 2 mb/s high speed pulse output , 6 chanel AB phase encoder
-Two chanel serial RS232 connector.
-SD card big capacity memory connector.
-Support 4 axis linkage.
Diagnose CPU, memory, LCD, I/O interface, parameter state, coordinates and processing program comprehensively every time the system is started or reset
-Automatic reverse clearance compensation
Automatic tool radius biasing and automatic tool tip transition -Abundant instruction system
Mirror processing instruction
Tool biasing instructions
Program cycle, program skip, program shift, program transfer, different end processing modes, macro definition and program management instructions
Fixed-point instructions: starting point, setting point, etc.
Linear, arc and spiral interpolation instructions
Six workpiece coordinate systems, nine extension coordinate systems and one reference point -Full English menu operation & full screen edit
4640/4620 CNC control system uses cascading menu structure and full Chinese operation to ensure simple operation and visibility.
-Abundant error-correction functions
Point out the nature and correct the errors in operation.
-Program exchange between CNC system and PC ·CNC system operating condition
System operating condition
Operating voltage 24V DC (with filter)
Operating temperature 0°C— 45°C
Optimum operating temperature 5°C— 40°C
operating humidity 10%——90%(no condensing)
Optimum operating humidity 20%——85%
Storage temperature 0°C—50°C
Storage humidity 10%——90%
Operating environment No excessive dust, acid, alkali, corrosive and explosive gases, no strong electromagnetic interference.
