Description











MOTOR

500w Dc 48V brushless motor electric bicycle motor
Item specifics
Protect Feature: Totally Enclosed
Commutation: Brushless
Type: Gear Motor
Output Power:500W
Certification: CCC
Usage: Home Appliance, Electric Bicycle
Construction: Permanent Magnet
Model Number: BM1418ZXF
Efficiency:75%
Speed(RPM):450rpm

Product Description
This model is BM1418ZXF-500W 48V
Rated speed: 2800rpm
Reduction ratio: 6:1
Actual speed: 450 rpm
Weight: 5.08KG
Applicable Chain: 420 chain
Load: about 300kg
Phase: 120 degrees
Applicable models: light tricycle
Features: With fan, better heat dissipation and durability

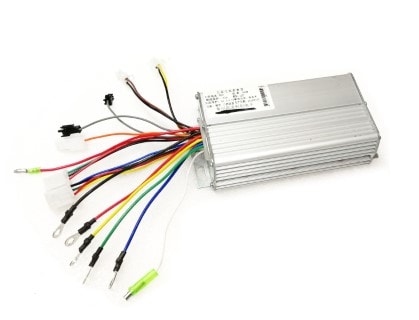

Speed Controller

48V 500W Electric Bicycle E-bike Scooter Brushless DC Motor Controller

Specification:
Brand new
Casing material: Aluminium
Size: approx. 150*85*48mm
Rated voltage: DC 48V
Rated power: 500W
Current: 32A
Applicable model: electric bicycle, electric scooter.

Feature:
Anti-coaste, vercurrent protection.
Automatic identification of the 48V.
Automatic identification of the Hall sensor.
Automatic identification of the Phase angle of 120 degrees.
Low level/E-ABS brake.
High level/E-ABS brake.
Brushless motor controller.
Compact design for easy installation.
Durable in use.



Throttle Electric Bike

1 Pair Waterproof LCD Display Electric Bike Throttle Electric Bike Motorcycle Electric Scooter Ebike handlebar Grip
Item specifics
Brand Name: Kun ray
Type: Throttle
Throttle Type:48V Li-Battery Throttle
THROTTLE TYPE: Throttle With LCD Screen and CUT/ON-OFF Key
Material: High-Quality Rubber & glass & Aluminum
Weight:350
SIZE: universal Throttle
Appliable/Usage:E-bike,Electric Scooter,Balance Car,E moto ,Electric

Product Description
Throttle Type: Li-Battery Throttle Grip With LCD Screen And Cut Off ON-OFF Power Key
Material: High-Quality Rubber & glass & Aluminum
Weight:350g
Size: universal Throttle
Apply to: E-bike, Electric Scooter, Balance Car, E motorcycle, Electric Bicycle Accessories

Packaging Details
Unit Type: Set
Package Weight: 10kg (1.10lb.)
Package Size: 25cm x 15cm x 15cm (9.84in x 5.91in x 5.91in)



Additional information

Weight 120 kg
Dimensions 30 × 25 × 25 cm
