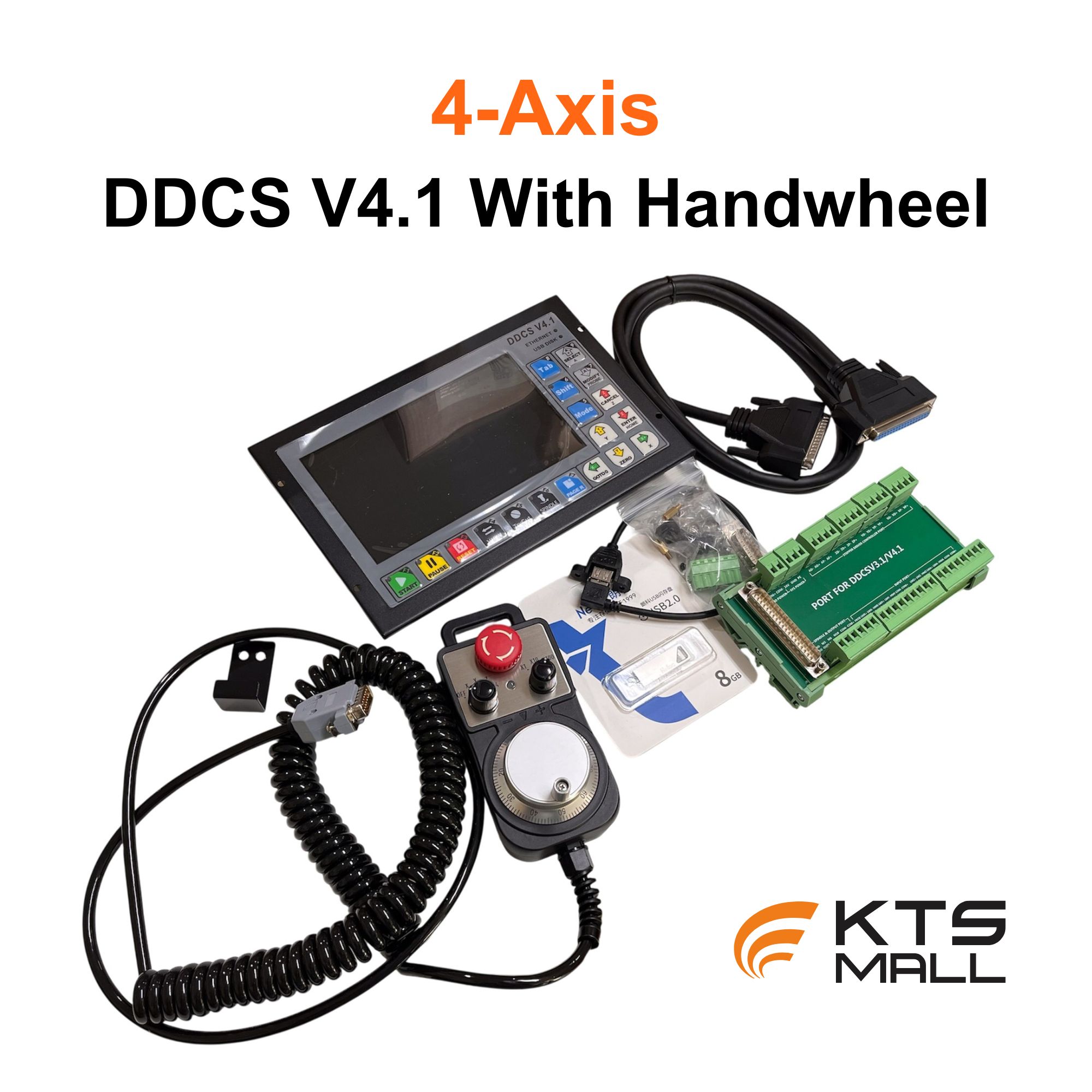

The DDCS V4.1 4 axis offline controller for stepper motor and servo motor Controller system, is updated from DDCS V3.1 on software and hardware and DDCS V4.1 numerical control system adopts the ARM + FPGA design framework.ARM controls the human-computer interface and G-code analysis and the FPGA provides the underlying algorithms and creates the control pulse,it has easy to operate and control reliability.
The panel layout structure of the DDCS V4.1 is very rational to save space. All operations are controlled by only 18 keys and the keys are composite keys that can act as function keys or numeric keys.and DDCS V4.1 offline controller support comprehensive Fanuc G code set. it can be used for many styles and types of CNC Router machines.
Lathes machine, Milling machine , Machining Center etc.
The DDCS V4.1 operates as a Stand Alone system without the need of a computer. This ensure high precision, accuracy and reliability. The interface, even though very comprehensive, can be learned in a very short time.
When operating the DDCS V4.1, the users will come across some English abbreviations. Here a list with explanations
FRO: Feed Rate Override
SRO: Spindle Rate Override
SJR: Jog Speed Setting
F: Feed rate, unit is mm/min
S: Spindle Speed, unit rev/min.
X/Y/Z/A: The coordinate code of the X/Y/Z/A axis.
BUSY: The system is busy. You still can adjust FRO and SRO
READY: READY mode, any operation can be done
RESET: Reset mode, controller is in“ OFF” mode, no operation can be performed
CONT: Continuous mode, each axis can be manually jogged with the arrow keys
Step :Manual Step Mode，each axis can be jogged in defined steps
MPG: MPG mode. Operate the machine with the MPG (Manual Pulse Generator)
AUTO: Run G code. Auto is showing when file is processing
