Description

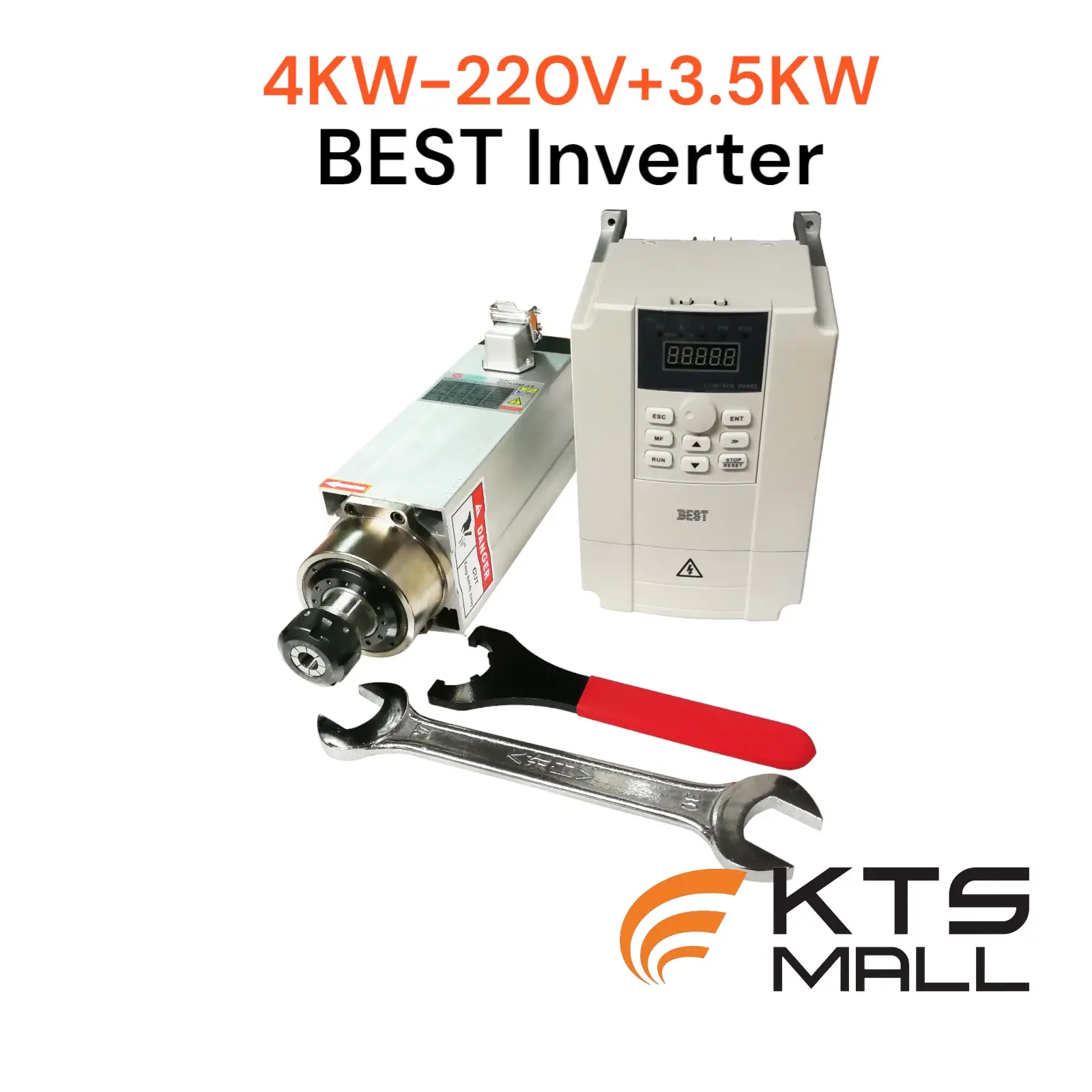

BEST inverter 4.0kw 220v FC300-4.0G-S2-B4 cnc router inverter
Item specifics
Model Number:FC300-4.0G-S2-B4
Rated input: sigle 220V 50-60Hz
Rated output: three phase 0-220V 18A.
Rate power: 4kw
Frequency: 0-1000Hz

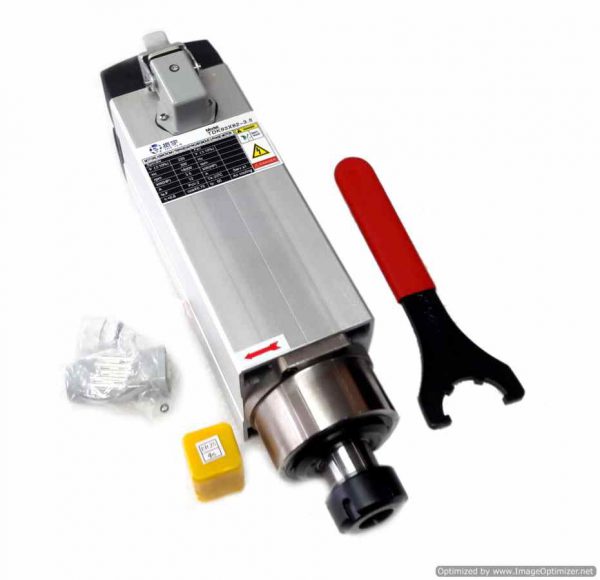

3.5kw Air Cooled Sprindle Motor
Item specifics
Model: TDK93X82-3.5
Type: Square High-Speed Motorized Spindle Motor
Speed (r/min): 18000rpm
Rated power: 3.5kw
voltage: 220v
current: 12A
Frequency: 300Hz
Collet: ER25, 6mm
Cooling type: Air Cooling
Bearing Lubrication: Grease
Bearings: 4 bearings : 2×7007 P4 , 2x7002c P4
Speed adjustment: Adjust output voltage and speed via VFD inverter and can achieve 0~18000 speed regulation
Power supply connection: Use air plug for connection with mark 1,2,3,4, 123 connect VFD UVW, 4 connect VFD ground wire

Packaging Details
Unit Type: piece
Package Weight: 15.0kg (33.07lb.)
Package Size: 20cm x 20cm x 20cm (7.87in x 7.87in x 7.87in)

Additional information

Weight 80 kg
Dimensions 30 × 20 × 20 cm
