Nema17-49 Close Loop + DE2405 Driver

Description

Nema17-49 Close Loop + DE2405 Driver

Nema17 closed-loop stepper motor

Item specifics

Step Angle(degrees): 1.8 degree
Holding Torque: 0.48 (N.m)
Current:  2A
Certification: CE
Model Number:  DE42XT49-1000-D0500P-4Z05
Phase: 2
Current / Phase: None
Type: Hybrid
Motor Type: Stepper Motor
Power Supply: DC
Power: 0.3 kW
Rated voltage: 20-50 (VDC)
Matchable motor: 2 phase 42 closed-loop stepper motor
Shaft Diameter: 5 (mm)
Customization: Available
Max Speed: 1200 (rpm)

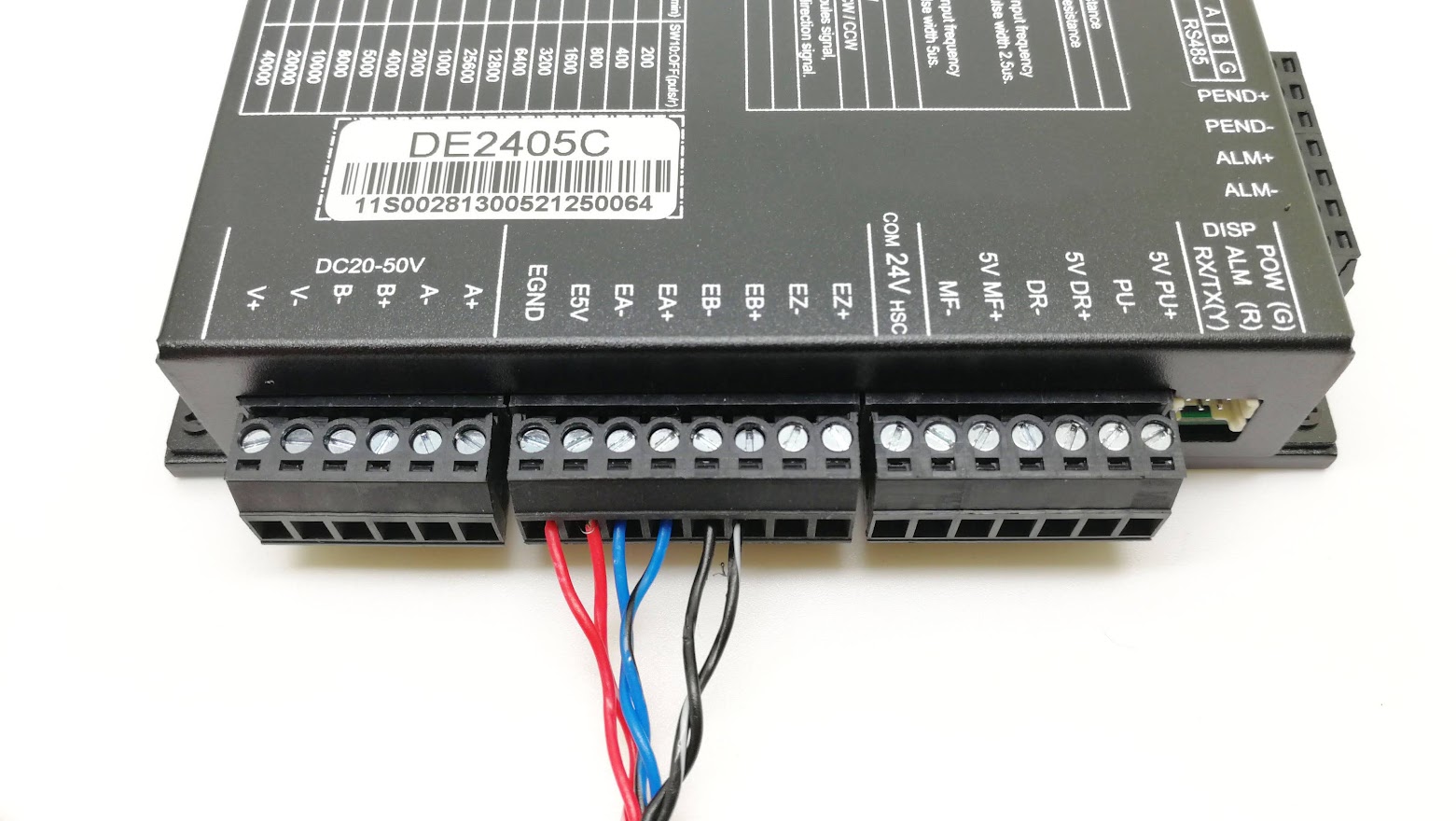

E2405C Digital Driver

Item specifics

Model Number: DE2405C Digital Driver
Controlling technology: 32-bit DSP chip
Current Output: adjusts according to load condition.(0-4A.)
Power Supply: 24V to 50VDC
Using with: 2-phase stepper motors NEMA17and NEMA23 frame size under 4.0A
Pulse input Frequency: 0 – 200Kpps.
Subdivision: 400 to 51200.
Protection: over current, over voltage, tracking error and so on.

Feature

– Adopting full closed-loop controlling technology with 32-bit DSP chip
– According to the load condition, it can control the output current in real-time and reduce the heating of motors to the minimum.
– It can drive with hybrid servo motors under NEMA23.NEMA17
– Different from the open-loop stepper motor, it is more stable and has less vibration.
– The highest response frequency:200Kpps.
– Opto-isolated signal Input/Output.
– It can remember the running position of motion precisely so that it is unnecessary to adjust its position when stops working.
– Subdivision setting from 400 to 51200.
– Protection of over current, over voltage, tracking error and so on.

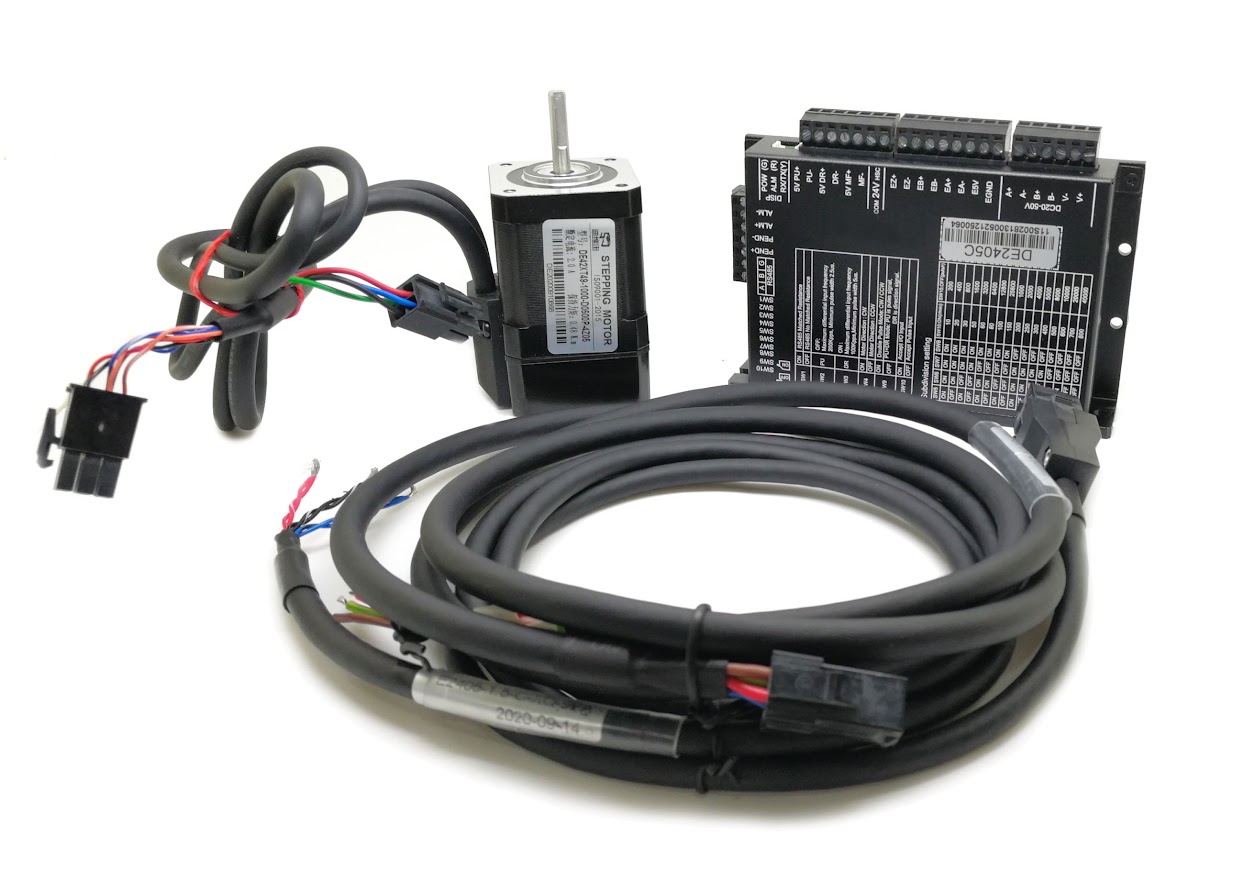

PACKING:

Nema17-49 Close Loop + DE2405 Driver

– DE2405 Digital Driver

– DE42XT49-1000-D0500P-4Z05 Motor

– Motor Cable

– Encoder Cable
