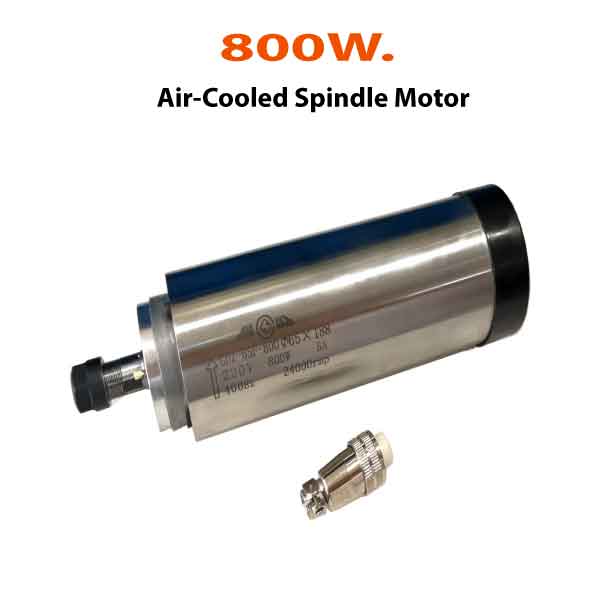

800W air cooled spindle Motor

Description

800W air cooled spindle Motor

220V 800W air cooled spindle Motor 65MM ER11

Specifications:

Model Number: GDZ65F-800-220
Application: Milling
Operating Speed: 24000RPM

Spindle parameters:

Diameter:65mm
Cooling: Air cooling
Power: 0.8kw
Voltage: 220VAC (Must be used with VFD)
Current: 3A
Frequency: 0-400Hz
Speed: 0-24000rpm
Collet: ER11
Runout Off: 0.01mm (High accuracy)
Bearing Type: 2X7002C P4 DT and 2X7000C P4 DT
Clip Knifediameter: 7mm,6.35mm,6mm,5mm,4mm,3.175mm,3mm,2mm,1mm
Interface: The air plug marked “1 “,”2″,” 3″,” 4″ ; “1 “,”2 “,”3” were connected to inverter (U, V, W), 4 connected inverter ground.

Application:

Use for wood, bamboo, normal PCB, PVC, PMMA, Plastic, duotone board(ABS)and etc nonmetal, also can engrave on gold, silver ,copper, aluminium, Pb etc soft metal surface working.
Attention: this is wood working spindle, only can used for wood working and aluminum working, please don’t use it for steel. If you need steel working, please check the metal spindle, thank you!

PACKING:

1  x  800W air cooled spindle Motor
