200W ECONOMICAL AC SERVO SET

Description

*ลิ้งค์ connections for other functions

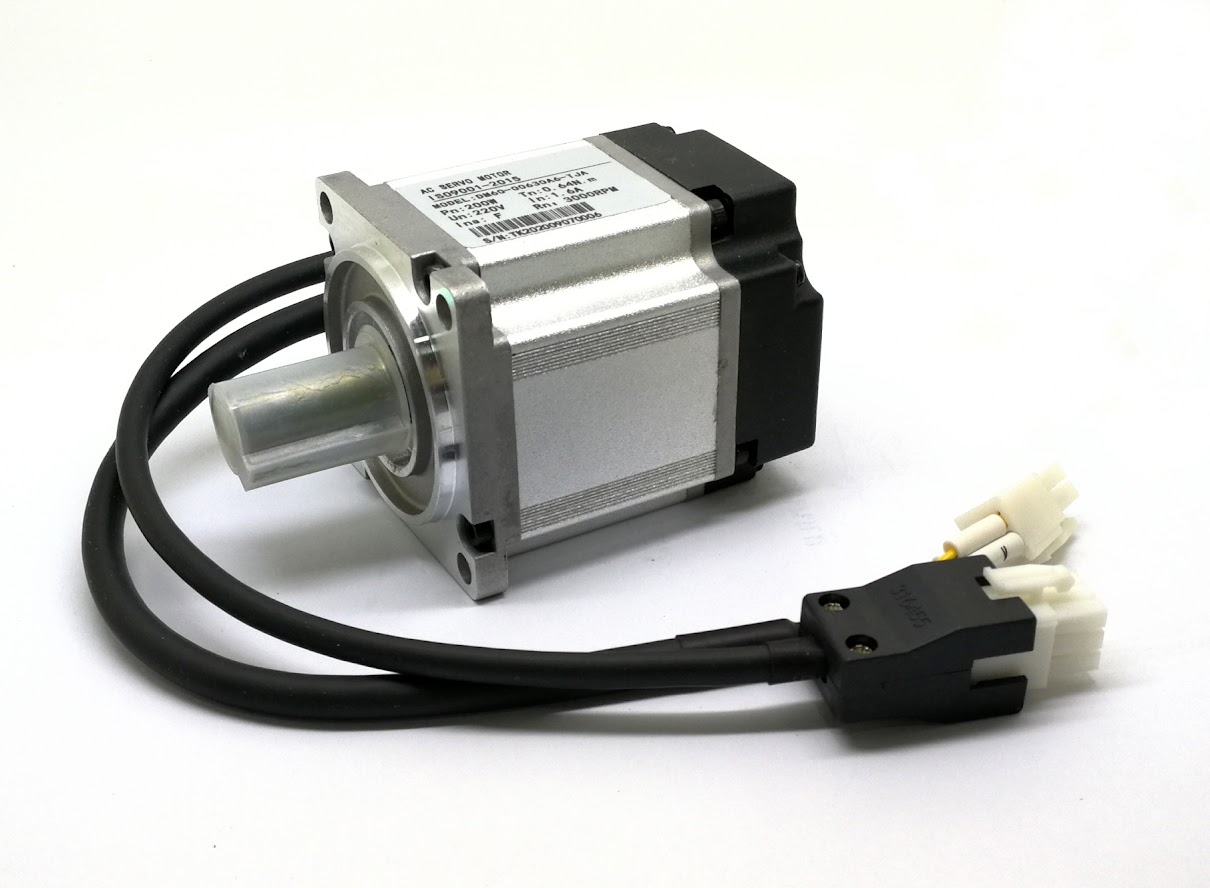

200W ECONOMICAL AC SERVO SET

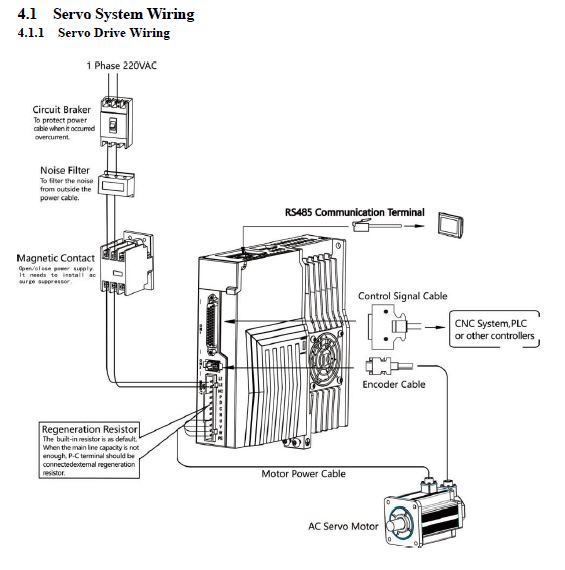

Servo Drive

Specification

Model:                                   P100S-40, P100S-75
Power:                                   0.05KW~0.4KW
Main Circuit:                        1 phase AC220V-15%~10% 50/60Hz
Control Mode:                     0：Position. 1：Speed. 2：Torque. 3：Position and speed. 4：Position and
torque. 5：Speed and torque
Protection Function:          Over speed, Over voltage, Under voltage,Overload, Abnormal of main
power, Abnormal encoder, Out of position error etc.
Monitor Function:             Speed, Current position, Command pulse accumulation,Position
deviation, Motor torque, Motor current, Running state etc.
Control Input:                     1：Servo on 2：Alarm clearance 3：CCW drive inhibition 4：CW drive
inhibition 5：Deviation counter clearance 6：Command pulse inhibition
7：CCW torque limit 8： CW torque limit
Control Output:                  Servo ready/Servo alarm/Positioning completion/Mechanical braking
Regeneration Braking:      Built-in/ Built-out
Display:                                5 LED digital display and 4 keys
Communication:                RS485

Input Mode:

0：pulse+direction
1：CCW/CW pulse
2：A/B phase orthogonal pulse
3：Internal position control
Electronic gear ratio: 1-32767/1-32767

PACKING:

1 SET x  200W ECONOMICAL AC SERVO SET

*USER MANUAL
