Description

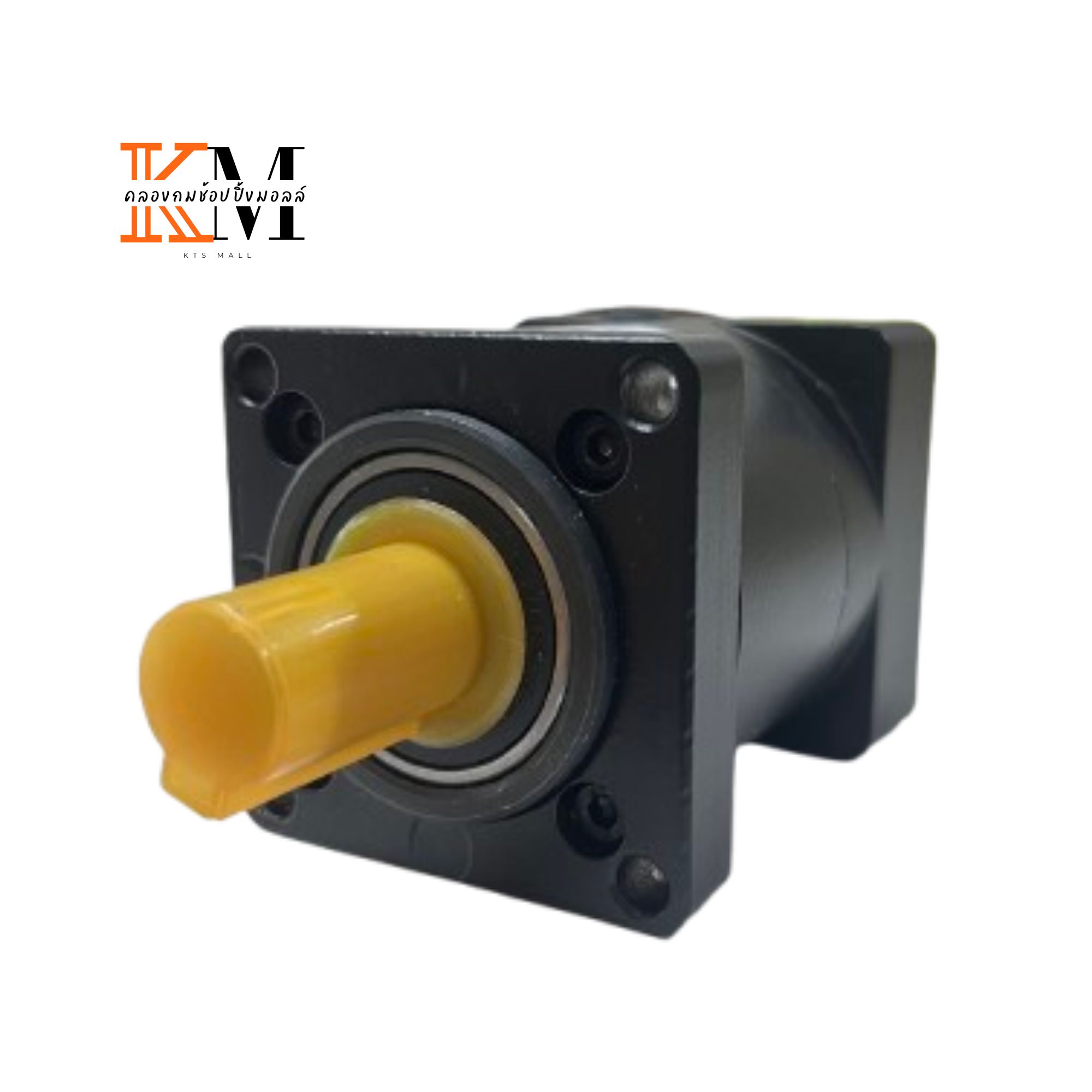

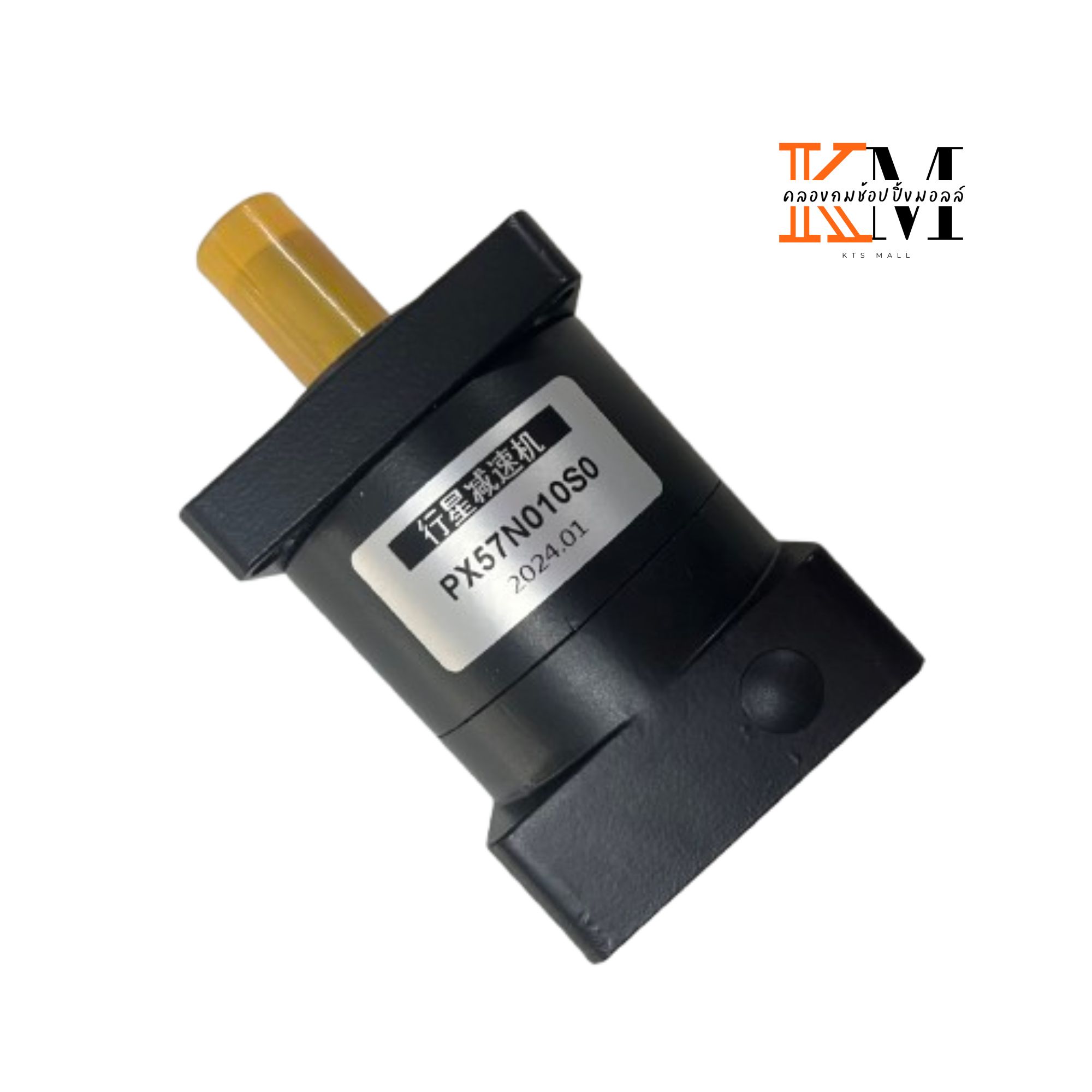

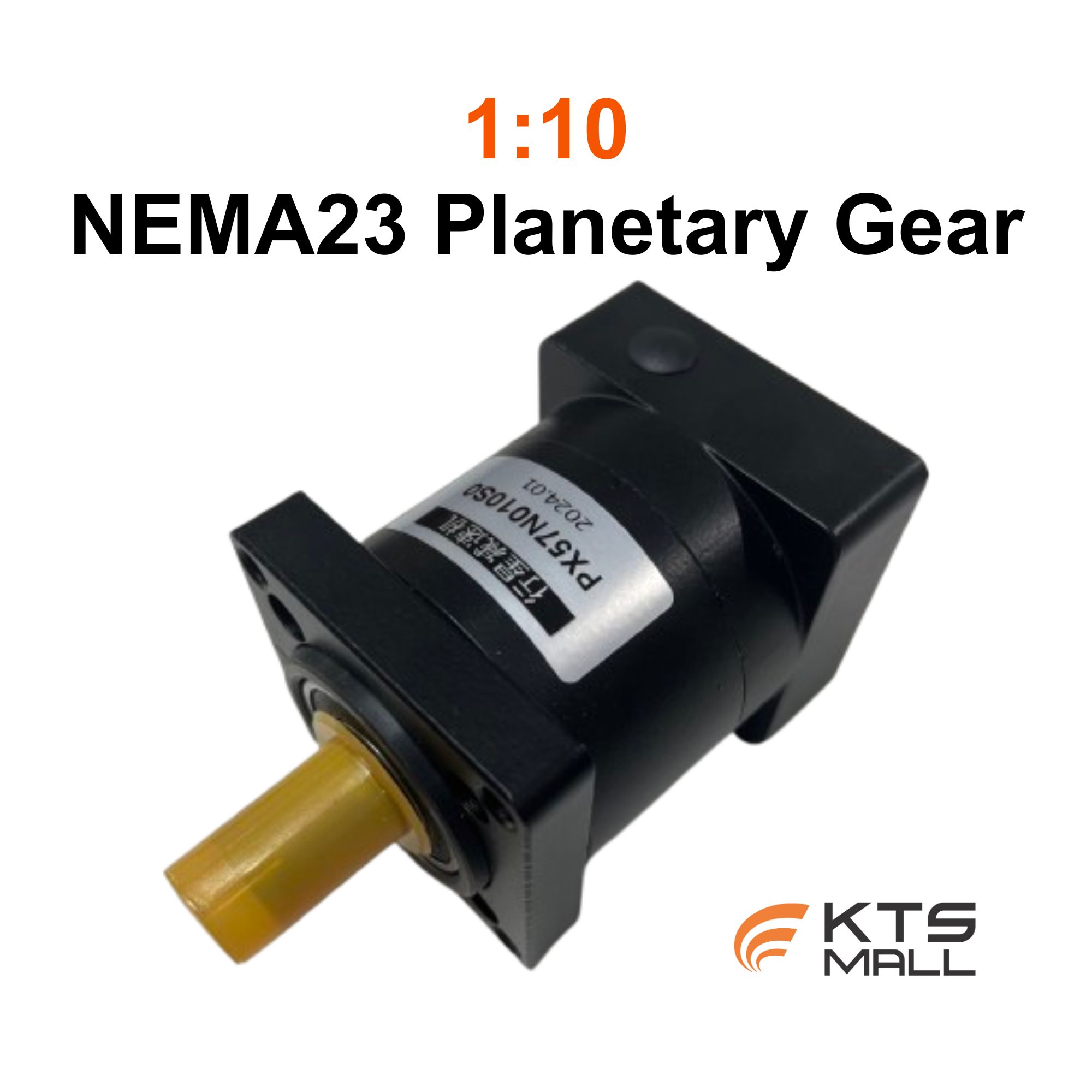

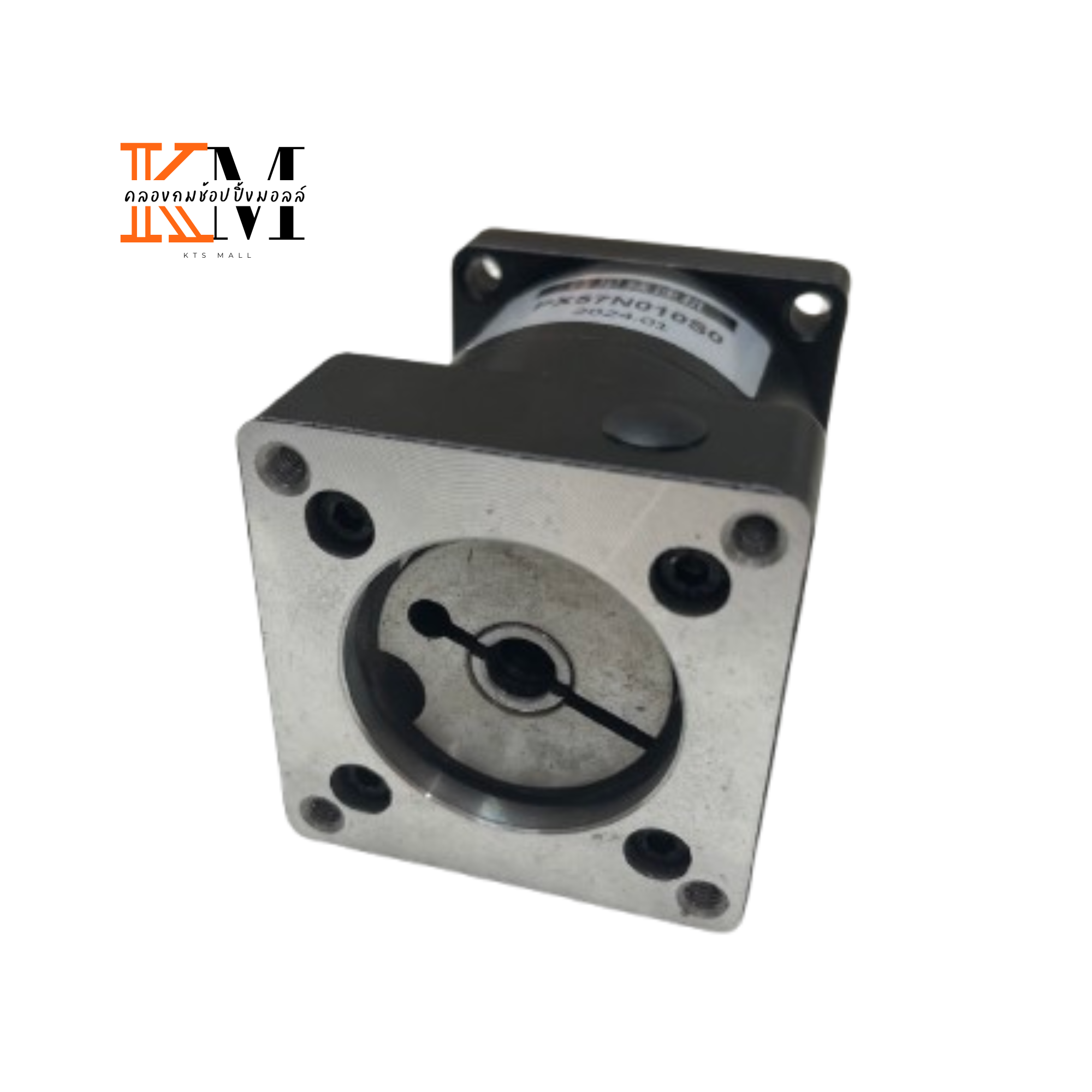

1:10 NEMA23 Planetary Gears

Item specifics

Type:                                             Hybrid
Phase:                                          2
Certification:                           CCC,   CE
Step Angle(degrees):          1.8
Model Number:                      NEMA23    PX6
Reduction Ratio:                   1:10
Input Shaft:                             8mm
Length :                                    76mm(1:6, 1:10),
Width:                                       57mm
Output Shaft:                         14mm

Product Detail:

Planetary can increase the torque of motor and reduce the speed of motor effectively ; It will help motor to take much more load.

ONE STACK : (1:4, 1:6)
TWO STACK : （1:10,1:16,1:24,1:36）
THREE STACK : ( 1:39.43 1:50 1:64 1:75.36 1:96 1:113.04 1:144 1:216)

Parameter:

Reduction Ratio: 1:10
Input Shaft: 8mm
Length : 76mm
Width: 57mm
Output Shaft:14mm

Packaging 1:10 NEMA23 Planetary Gear Details
Unit Type: piece
Package Weight: 2.200kg (4.85lb.)
Package Size: 18cm x 15cm x 10cm (7.09in x 5.91in x 3.94in)
