ชุด Set Close loop NEMA34-86HB156-100 + DL86H Driver

Description

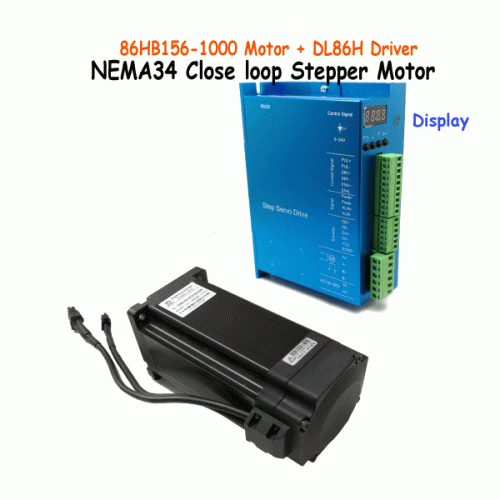

ชุด NEMA34-86HB156+Driver

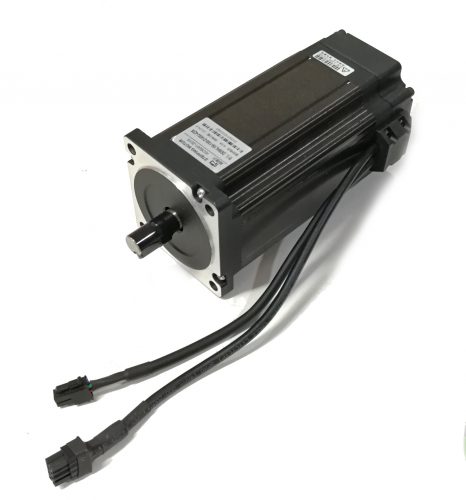

86HL156-1000 Close loop Stepper Motor 12.2Nm.6A
86mm two-phase closed loop stepper motor

Specification

Phase: 2phase
Current: 6A
Resistance: 0.76 Ohm
Inductance: 8.4 mH
Rated torque: 12.2 Nm.
Rotor Inertia: 4000 g/cm2
Dielectric Strength: 1000VDC
Insulation Resistance: >500M(500V)

Product Introduction

86mm two-phase closed loop stepper motor
Product Introduction
Item Specifications Step accuracy ±5% Temperature rise 80℃ Max
Ambient temperature -20℃~+50℃ Insulation resistance 100M Ω Min 500VDC Withstand voltage 500V AC 1minute
Maximum radial runout 0.06mm (450g load)
Maximum axial runout 0.08mm (450g load)

New Step Servo Driver-DL86H

DL86H is a new digital step-servo driver, using a vector controlling technology.It can drive 57 series and 86 series step-motors.
DL86H can fit various automation equipment and instruments with below

technical features:

-Use of 32 bit motor control DSP
-Use of vector servo control technology
-Easy Operation with four LED Segment Displays and keyX4
-Wide range of drive current drive current from 0.4 to 8.0A/phase
-Can drive 57 series and 86 series hybrid step-motors
-Opto-isolated signal input/output
-Highest response frequency: 200Kpps
-Provide 16 channels micro steps ,highest micro step: 51200 ppr
-Provide Electronic Gear Ratio
-Protection circuit ： Over heat; Over current; Over voltage; Over-speed and
-position deviation
-Two control method:Position,Speed
-Net Weight:650g

Packing:
1 SET  x  Set Close loop NEMA34-86HB156-1000 + DL86H Driver
Weight: 6.5Kg
Packing size:  30cm x 20cm x 15cm
