เครื่องวัดรอบ HS2234, Measuring range 2.5RPM-99,999RPM
Display: 5 digits LCD, Max 99,999
Measuring range: 2.5RPM-99,999RPM
Resolution: 2.5RPM-999.9RPM (0.1RPM); 1000RPM-99,999RPM (1RPM)
Accuracy: ±(0.05% rdg + 1 digital)
Available distance: 50mm-500mm
Sampling time: 0.5s(over 120 RPM)
Time base: Crystal Oscillator
Operating Temperature: 0 ~ 50 degrees Celsius
Storage Temperature: -20 ~ 60 degrees Celsius

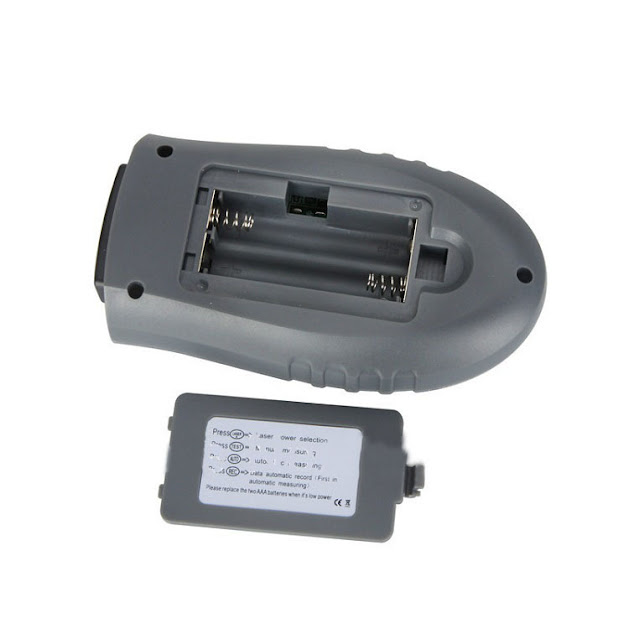

Powered by: 2 * AAA batteries (Not included)
Power consumption: Laser in low power 25mA; Laser in high power 40mA
Tachometer size: 10.8 * 6 * 2.8cm / 4.3 * 2.4 * 1.1oz
Tachometer weight: 73g / 2.6oz
Package size: 20 * 12.5 * 6cm / 7.9 * 4.9 * 2.4in
Package weight: 173g / 6.1oz

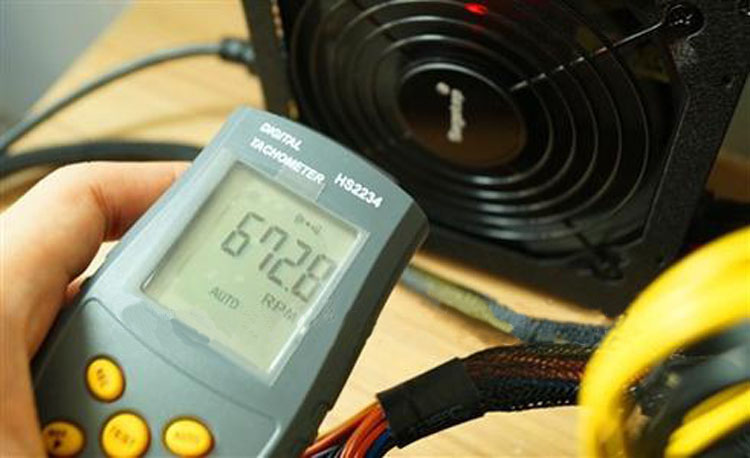

This Digital Tachometer is widely used for testing the rotating speed of machines. With LCD backlight, it can work in the dark.
MCU Embedded, based on optoelectronic, semiconductor laser and other advanced technology, and non-contact RPM measurement.
Wide range of the measurement and high-resolution.
Automatic measuring and manual measuring selection.
High and low power of laser alternative for far and near distance measurement and eye protection.
Auto recording 50 sets of data and adjustable sampling interval time.
Automatic to record the Max, Min and Average data.
With LCD backlight, it can work in the dark.
Auto shut off after 30 seconds without operation.
