มอเตอร์เกียร์ 24VDC Motor

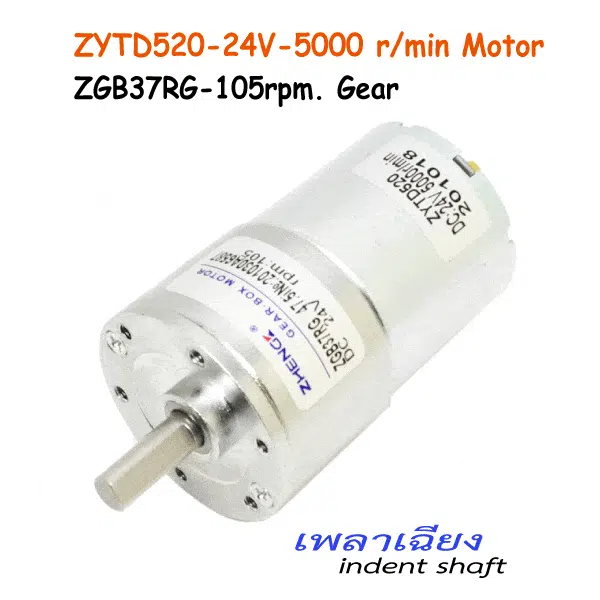

24VDC Motor Gear 105  ZYTD520 Motor DC 24V, 5000R/min


150x50px visa accept






มอเตอร์เกียร์ 24VDC Motor Gear

24V DC Gear-Box Speed control Electric Motor

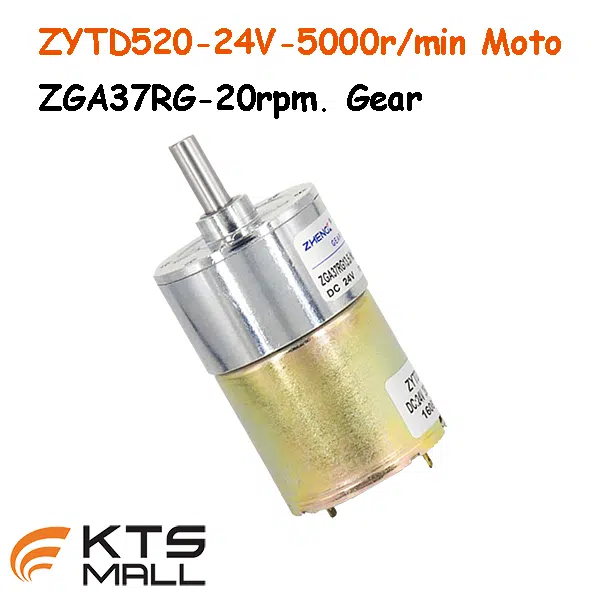

DC Gear Motor 12V 24V  ZGA37RG ZYTD520  Reversible Rotation
Motors Slow Speed 10W 2/5/10/15/20/30/50/1000rpm

Brand Name:   KTS MALL
Origin:       CN(Origin)
Certification:    CCC
Continuous Current(A):     0.6A
Commutation:    Brush
Model Number:     ZGA37RG,  ZGA37RA
Type:    Gear Motor
Protect Feature:     Explosion-proof
Output Power:    10W
Construction:    Permanent Magnet
Torque:    Depend on the speed
Usage:    BoAt

Usage: Home Appliance
Usage:   car
Efficiency:   IE 1
Product Name:   DC Geared Motor
Output Speed:   2/5/10/15/20/30/50/60/85/100/120/150/200/300/400/600/830/1000RPM
Rated Voltage:    DC 12V 24V
Output Shaft Size:   6mm
Motor outer Diameter:   37mm
Gearbox Length:    Depend on reduction ratio
Direction of selection:   Variable
Feature 1: DC motor,Gear motor dc 24V,gear motor 12 Volt
Function 1: 12V dc motor speed controller,variable speed motor
Function 2: Widely used in instrumentation, automation control, stage lighting,etc

Name:   DC Geared Motor
Model:    ZGA37RG, ZGA37RA
Rated Voltage: DC12V/24V
Output Speed: 5/10/15/20/30/50/60/85/100/120/150/200/300/400/500/600/830/1000RPM
Motor outer Diameter:   37mm
Gearbox Length: Depend on reduction ratio
Output shaft size:   6mm  x  14mm
Radial force:   <1kgf
Axial force:   <0.7kgf
Radial clearance L:  <0.1mm
Axial clearance:   <0.3mm
Shell material:   metal
Output bearing:   with oil bearing
The spindle is subjected to press-in force:   <10kgf
Package:   1pc dc motor ZGA37

Package includes:
1 x 24V DC 100 RPM Gear-Box Electric Motor
Note: The color of the item may vary slightly due to photography and your own computer Metal gear and good reliability
This is a high quality 24V 100RPM replacement for a faulty gear box motor Benefiting from high torque and low noise,
this motor is solidly constructed This motor is great for speed control and suitable for most of high torque applications

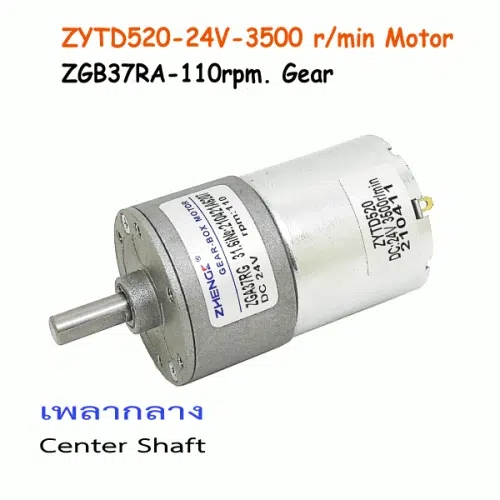

Voltage: 24V DC RPM: 100 Reversibility: Reversible Speed: 3500r/min Length of Motor(including spindle): 78.5mm
Diameter: 37mm Shaft length: 15mm Shaft diameter: 6mm Weight: 195g

Package includes: 1 x 24V DC 100 RPM Gear-Box Electric Motor

Packaging Details
Unit Type: piece
Package Weight: 0.200kg (0.44lb.)
Package Size: 18cm x 15cm x 2cm (7.09in x 5.91in x 0.79in)

Additional information

Weight 35 kg
Dimensions 15 × 10 × 10 cm
รุ่น Model

แบบเพลากลาง, แบบเพลาเฉียง
