Description

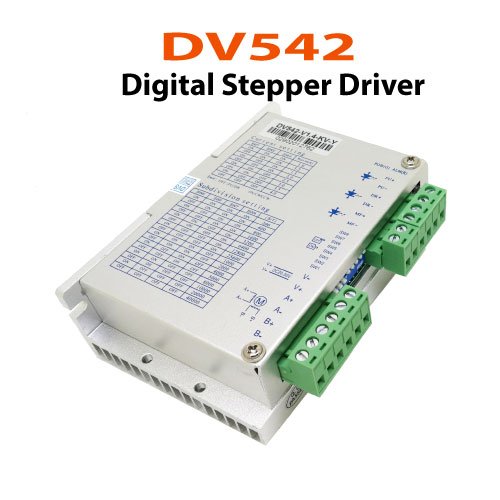

The DVS542 is a full digital 2-phase stepper driver based on DSP control, the drive voltage ranges from 20V to 50VDC. It is designed for use with the 2-phase hybrid stepper motor of all kinds with 42mm to 57mm outside diameter, regulated phase current under 4.0A. Due to the perfect use of the constant current chopping circuit, the motor enables it to run smoothly. The highest micro-step is 40000ppr.

• Feature
• 16 channels constant angle, constant torque micro-steps, highest micro-step: 40000ppr
• Highest response frequency: 200Kpps
• A current of winding will be reduced by approximately 50% when no step pulse command is received for 1.5 seconds
• Opto-isolated signal I/O
• Drive current is adjustable in 8 channels from 1.0A/phase to 4.0A/phase
• Single power supply from 20V to 50VDC
• Better to overcome the problem of low-frequency vibration
• Dimension : 118×33×75.5mm³; Net Weight : 0.3Kg

PACKING:

1 x DV542-Stepper Motor Driver 200Microstep
